设计说明

源代码位于 bsp/artinchip/

  • bsp/artinchip/drv/hrtimer/drv_hrtimer.c,HRTimer Driver 层实现

  • bsp/artinchip/include/drv/drv_hrtimer.h,HRTimer Driver 层接口

  • bsp/artinchip/hal/pwmcs/hal_cap.c,PWMCS CAP 模块的 HAL 层实现

  • bsp/artinchip/include/hal/hal_cap.h,PWMCS CAP 模块的 HAL 层接口头文件

模块架构

HRTimer 驱动 Driver 层采用 RT-Thread 的 hwtimer 设备驱动框架,如果只使用 HAL 层也可以支持 baremetal 方式的应用场景。

../images/sw_system12.png

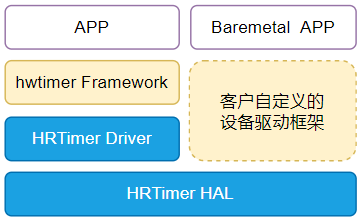

1. HRTimer 驱动的软件架构图

关键流程设计

初始化流程

HRTimer 驱动的初始化接口通过 INIT_DEVICE_EXPORT(drv_hwtimer_init) 完成,主要是通过调用 hwtimer 子系统的接口 rt_device_hwtimer_register() 注册一个 hwtimer 设备。

CAP 控制器的配置过程,主要步骤有:

  1. 初始化 PWMCS 模块的 clk

  2. 使能 CAP 指定通道的 clk,并设置为 PWM 计数模式

  3. 设置 CAP 的 cnt 值

  4. 使能 CAP 的中断

  5. 启动 CAP 计数

数据结构设计

  • struct aic_cap_arg:属于 HAL 层接口,记录每一个 CAP 通道的配置信息
    struct aic_cap_arg {
        u16 available;
        u16 id;
        u32 freq;
        u32 prd;
        u32 irq_cnt;
    };
  • struct hrtimer_info:属于 Driver 层接口,记录一个 HRTimer 设备的配置信息:
    struct hrtimer_info {
        char name[12];
        u32 id;
        rt_hwtimer_t hrtimer;
    };

Driver 层接口设计

以下接口是 hwtimer 设备驱动框架的标准接口。

struct rt_hwtimer_ops
{
    void (*init)(struct rt_hwtimer_device *timer, rt_uint32_t state);
    rt_err_t (*start)(struct rt_hwtimer_device *timer, rt_uint32_t cnt, rt_hwtimer_mode_t mode);
    void (*stop)(struct rt_hwtimer_device *timer);
    rt_uint32_t (*count_get)(struct rt_hwtimer_device *timer);
    rt_err_t (*control)(struct rt_hwtimer_device *timer, rt_uint32_t cmd, void *args);
};
1. drv_hrtimer_init
函数原型 void drv_hrtimer_init(rt_hwtimer_t *timer, rt_uint32_t state)
功能说明 初始化配置一路 Timer
参数定义 timer - 指向 rt_hwtimer_t 设备的指针 state - 1,表示打开;0,表示关闭
返回值
注意事项 -
2. drv_hrtimer_start
函数原型 rt_err_t drv_hrtimer_start(rt_hwtimer_t *timer, rt_uint32_t cnt, rt_hwtimer_mode_t mode)
功能说明 启动 Timer
参数定义 timer - 指向 rt_hwtimer_t 设备的指针 Timer 的超时计数,单位是:1/Freq 秒 Oneshot、或 Period 类型
返回值 0,成功;<0,失败
注意事项 -
3. drv_hrtimer_stop
函数原型 void drv_hrtimer_stop(rt_hwtimer_t *timer)
功能说明 停止 Timer
参数定义 timer - 指向 rt_hwtimer_t 设备的指针
返回值
注意事项 -
4. drv_hrtimer_ctrl
函数原型 rt_err_t drv_hrtimer_ctrl(rt_hwtimer_t *timer, rt_uint32_t cmd, void *args)
功能说明 HRTimer 驱动的 ioctl 接口
参数定义 timer - 指向 rt_hwtimer_t 设备的指针 ioctl 命令码 args - ioctl 命令相应的参数
返回值 0,成功;<0,失败
注意事项 目前仅支持设置 Timer 的 Freq 值

HAL 层接口设计

HAL 层的函数接口声明存放在 hal_cap.h 中,主要接口有:

void hal_cap_ch_init(u32 ch);
void hal_cap_ch_deinit(u32 ch);

void hal_cap_int_enable(u32 ch, int enable);
u32 hal_cap_is_pending(u32 ch);
int hal_cap_set_freq(u32 ch, u32 freq);
int hal_cap_set_cnt(u32 ch, u32 cnt);
int hal_cap_get(u32 ch);
int hal_cap_enable(u32 ch);
int hal_cap_disable(u32 ch);
void hal_cap_cnt_start(u32 ch);
void hal_cap_cnt_stop(u32 ch);

int hal_cap_init(void);
int hal_cap_deinit(void);

void hal_cap_status_show(void);

Demo

本 Demo 是 test_hrtimer 的部分源码(bsp/examples/test-hrtimer/test_hrtimer.c):
