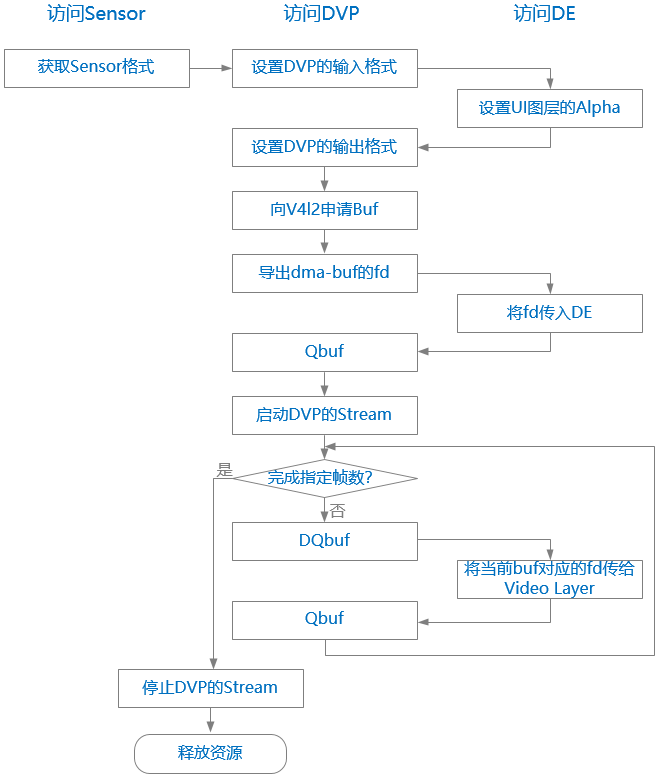

Demo

Demo 代码见 test-dvp/test_dvp.c，如下：

#include <linux/dma-buf.h>
#include <linux/dma-heap.h>
#include <linux/videodev2.h>
#include <linux/v4l2-subdev.h>
#include <video/artinchip_fb.h>
#include <artinchip/sample_base.h>

/* Global macro and variables */

#define VID_BUF_NUM     3
#define DVP_PLANE_NUM       2
#define CMA_BUF_MAX     (8 * 1024 * 1024)
#define DMA_HEAP_DEV        "/dev/dma_heap/reserved"
#define FB_DEV          "/dev/fb0"
#define VIDEO_DEV       "/dev/video0"
#define SENSOR_DEV      "/dev/v4l-subdev0"
#define DVP_SUBDEV_DEV      "/dev/v4l-subdev1"

static const char sopts[] = "f:c:u";
static const struct option lopts[] = {
    {"format",    required_argument, NULL, 'f'},
    {"capture",   required_argument, NULL, 'c'},
    {"usage",       no_argument, NULL, 'u'},
    {0, 0, 0, 0}
};

struct video_plane {
    int fd;
    int buf;
    int len;
};

struct video_buf_info {
    char *vaddr;
    u32 len;
    u32 offset;
    struct video_plane planes[DVP_PLANE_NUM];
};

struct aic_video_data {
    int w;
    int h;
    int frame_size;
    int frame_cnt;
    int fmt;  // output format
    struct v4l2_subdev_format src_fmt;
    struct video_buf_info binfo[VID_BUF_NUM];
};

static int g_fb_fd = -1;
static int g_video_fd = -1;
static int g_sensor_fd = -1;
static int g_dvp_subdev_fd = -1;
static struct aic_video_data g_vdata = {0};

/* Functions */

void usage(char *program)
{
    printf("Usage: %s [options]: \n", program);
    printf("\t -f, --format\t\tformat of input video, NV16/NV12 etc\n");
    printf("\t -c, --count\t\tthe number of capture frame \n");
    printf("\t -u, --usage \n");
    printf("\n");
    printf("Example: %s -f yuv422 -c 1\n", program);
}

/* Open a device file to be needed. */
int device_open(char *_fname, int _flag)
{
    s32 fd = -1;

    fd = open(_fname, _flag);
    if (fd < 0) {
        ERR("Failed to open %s errno: %d[%s]\n",
            _fname, errno, strerror(errno));
        exit(0);
    }
    return fd;
}

int set_ui_layer_alpha(int val)
{
    int ret = 0;
    struct aicfb_alpha_config alpha = {0};

    alpha.layer_id = 1;
    alpha.enable = 1;
    alpha.mode = 1;
    alpha.value = val;
    ret = ioctl(g_fb_fd, AICFB_UPDATE_ALPHA_CONFIG, &alpha);
    if (ret < 0)
        ERR("ioctl() failed! errno: %d[%s]\n", errno, strerror(errno));

    return ret;
}

void vidbuf_dmabuf_begin(struct aic_video_data *vdata)
{
    int i, j;
    struct aicfb_dmabuf_fd fds = {0};

    for (i = 0; i < VID_BUF_NUM; i++) {
        struct video_plane *plane = (struct video_plane *)&vdata->binfo[i];
        for (j = 0; j < DVP_PLANE_NUM; j++, plane++) {
            fds.fd = plane->fd;
            if (ioctl(g_fb_fd, AICFB_GET_DMABUF, &fds) < 0)
                ERR("ioctl() failed! err %d[%s]\n",
                    errno, strerror(errno));
        }
    }
}

void vidbuf_dmabuf_end(struct aic_video_data *vdata)
{
    int i, j;
    struct aicfb_dmabuf_fd fds = {0};

    for (i = 0; i < VID_BUF_NUM; i++) {
        struct video_plane *plane = (struct video_plane *)&vdata->binfo[i];
        for (j = 0; j < DVP_PLANE_NUM; j++, plane++) {
            fds.fd = plane->fd;
            if (ioctl(g_fb_fd, AICFB_PUT_DMABUF, &fds) < 0)
                ERR("ioctl() failed! err %d[%s]\n",
                    errno, strerror(errno));
        }
    }
}

int sensor_get_fmt(void)
{
    struct v4l2_subdev_format f = {0};

    g_sensor_fd = device_open(SENSOR_DEV, O_RDWR);
    if (g_sensor_fd < 0)
        return -1;

    f.pad = 0;
    f.which = V4L2_SUBDEV_FORMAT_ACTIVE;
    if (ioctl(g_sensor_fd, VIDIOC_SUBDEV_G_FMT, &f) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }
#if 0
    f.format.code = MEDIA_BUS_FMT_YUYV8_2X8;
    if (ioctl(g_sensor_fd, VIDIOC_SUBDEV_S_FMT, &f) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }
#endif
    g_vdata.src_fmt = f;
    g_vdata.w = g_vdata.src_fmt.format.width;
    g_vdata.h = g_vdata.src_fmt.format.height;
    return 0;
}

int dvp_subdev_set_fmt(void)
{
    struct v4l2_subdev_format f = g_vdata.src_fmt;

    g_dvp_subdev_fd = device_open(DVP_SUBDEV_DEV, O_RDWR);
    if (g_dvp_subdev_fd < 0)
        return -1;

    f.pad = 0;
    f.which = V4L2_SUBDEV_FORMAT_ACTIVE;
    if (ioctl(g_dvp_subdev_fd, VIDIOC_SUBDEV_S_FMT, &f) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    return 0;
}

int dvp_cfg(int width, int height, int format)
{
    struct v4l2_format f = {0};

    f.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
    f.fmt.pix_mp.width = g_vdata.src_fmt.format.width;
    f.fmt.pix_mp.height = g_vdata.src_fmt.format.height;
    f.fmt.pix_mp.pixelformat = g_vdata.fmt;
    f.fmt.pix_mp.num_planes = DVP_PLANE_NUM;
    if (ioctl(g_video_fd, VIDIOC_S_FMT, &f) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    return 0;
}

int dvp_expbuf(int index)
{
    int i;
    struct video_buf_info *binfo = &g_vdata.binfo[index];
    struct v4l2_exportbuffer expbuf = {0};

    for (i = 0; i < DVP_PLANE_NUM; i++) {
        memset(&expbuf, 0, sizeof(struct v4l2_exportbuffer));
        expbuf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
        expbuf.index = index;
        expbuf.plane = i;
        if (ioctl(g_video_fd, VIDIOC_EXPBUF, &expbuf) < 0) {
            ERR("ioctl() failed! err %d[%s]\n",
                errno, strerror(errno));
            return -1;
        }
        binfo->planes[i].fd = expbuf.fd;
    }

    return 0;
}

int dvp_request_buf(int num)
{
    int i;
    struct v4l2_buffer buf = {0};
    struct v4l2_requestbuffers req = {0};
    struct v4l2_plane planes[DVP_PLANE_NUM];

    req.count  = num;
    req.type   = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
    req.memory = V4L2_MEMORY_MMAP; // Only MMAP will do alloc memory
    if (ioctl(g_video_fd, VIDIOC_REQBUFS, &req) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    for (i = 0; i < num; i++) {
            if (dvp_expbuf(i) < 0)
            return -1;

            memset(&buf, 0, sizeof(struct v4l2_buffer));
            buf.type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
            buf.index = i;
            buf.length = DVP_PLANE_NUM;
            buf.memory = V4L2_MEMORY_DMABUF;
            buf.m.planes = planes;
            if (ioctl(g_video_fd, VIDIOC_QUERYBUF, &buf) < 0) {
            ERR("ioctl() failed! err %d[%s]\n",
                errno, strerror(errno));
            return -1;
            }
    }

    return 0;
}

void dvp_release_buf(int num)
{
    int i;
    struct video_buf_info *binfo = NULL;

    for (i = 0; i < num; i++) {
        binfo = &g_vdata.binfo[i];
        if (binfo->vaddr) {
            munmap(binfo->vaddr, binfo->len);
            binfo->vaddr = NULL;
        }
    }
}

int dvp_queue_buf(int index)
{
    struct v4l2_buffer buf = {0};
    struct v4l2_plane planes[DVP_PLANE_NUM] = {0};

    buf.type   = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
    buf.memory = V4L2_MEMORY_MMAP;
    buf.index  = index;
    buf.length = DVP_PLANE_NUM;
    buf.m.planes = planes;
    if (ioctl(g_video_fd, VIDIOC_QBUF, &buf) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    return 0;
}

int dvp_dequeue_buf(int *index)
{
    struct v4l2_buffer buf = {0};
    struct v4l2_plane planes[DVP_PLANE_NUM] = {0};

    buf.type   = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;
    buf.memory = V4L2_MEMORY_MMAP;
    buf.length = DVP_PLANE_NUM;
    buf.m.planes = planes;
    if (ioctl(g_video_fd, VIDIOC_DQBUF, &buf) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    *index = buf.index;
    return 0;
}

int dvp_start(void)
{
    enum v4l2_buf_type type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;

    if (ioctl(g_video_fd, VIDIOC_STREAMON, &type) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    return 0;
}

int dvp_stop(void)
{
    enum v4l2_buf_type type = V4L2_BUF_TYPE_VIDEO_CAPTURE_MPLANE;

    if (ioctl(g_video_fd, VIDIOC_STREAMOFF, &type) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    return 0;
}

int video_layer_set(struct aic_video_data *vdata, int index)
{
    struct aicfb_layer_data layer = {0};
    struct video_buf_info *binfo = &vdata->binfo[index];

    layer.layer_id = 0;
    layer.enable = 1;
#if 1
    layer.scale_size.width = vdata->w;
    layer.scale_size.height = vdata->h;
#else
    layer.scale_size.width = 780;
    layer.scale_size.height = 600;
#endif
    layer.pos.x = 10;
    layer.pos.y = 10;
    layer.buf.size.width = vdata->w;
    layer.buf.size.height = vdata->h;
    layer.buf.format = AIC_FMT_NV16;
    layer.buf.dmabuf_fd[0] = binfo->planes[0].fd;
    layer.buf.dmabuf_fd[1] = binfo->planes[1].fd;
    layer.buf.stride[0] = vdata->w;
    layer.buf.stride[1] = vdata->w;

    if (ioctl(g_fb_fd, AICFB_UPDATE_LAYER_CONFIG, &layer) < 0) {
        ERR("ioctl() failed! err %d[%s]\n", errno, strerror(errno));
        return -1;
    }

    return 0;
}

int main(int argc, char **argv)
{
    int c, frame_cnt = 1;
    int i, index = 0;

    DBG("Compile time: %s\n", __TIME__);
    g_vdata.fmt = V4L2_PIX_FMT_NV16;
    while ((c = getopt_long(argc, argv, sopts, lopts, NULL)) != -1) {
        switch (c) {
        case 'f':
            if (strncasecmp("nv12", optarg, strlen(optarg)) == 0)
                g_vdata.fmt = V4L2_PIX_FMT_NV12;
            continue;
        case 'c':
            frame_cnt = str2int(optarg);
            continue;
        case 'u':
            usage(argv[0]);
            return 0;
        default:
            break;
        }
    }

    if (sensor_get_fmt() < 0)
        return -1;
    if (dvp_subdev_set_fmt() < 0)
        return -1;

    if (g_vdata.fmt == V4L2_PIX_FMT_NV16)
        g_vdata.frame_size = g_vdata.w * g_vdata.h * 2;
    if (g_vdata.fmt == V4L2_PIX_FMT_NV12)
        g_vdata.frame_size = (g_vdata.w * g_vdata.h * 3) >> 1;

    g_fb_fd = device_open(FB_DEV, O_RDWR);
    if (g_fb_fd < 0)
        return -1;
    if (set_ui_layer_alpha(128) < 0)
        goto end;

    g_video_fd = device_open(VIDEO_DEV, O_RDWR);
    if (g_video_fd < 0)
        goto end;
    if (dvp_cfg(g_vdata.w, g_vdata.h, g_vdata.fmt) < 0)
        goto end;
    if (dvp_request_buf(VID_BUF_NUM) < 0)
        goto end;

    vidbuf_dmabuf_begin(&g_vdata);
    for (i = 0; i < VID_BUF_NUM; i++)
        if (dvp_queue_buf(i) < 0)
            goto end;

    if (dvp_start() < 0)
        goto end;
    for (i = 0; i < frame_cnt; i++ ) {
        if (dvp_dequeue_buf(&index) < 0)
            break;
        DBG("Set the buf %d to video layer\n", index);
        if (video_layer_set(&g_vdata, index) < 0)
            break;
        dvp_queue_buf(index);
    }
    dvp_stop();
    vidbuf_dmabuf_end(&g_vdata);
    dvp_release_buf(VID_BUF_NUM);

end:
    if (g_fb_fd > 0)
        close(g_fb_fd);
    if (g_video_fd > 0)
        close(g_video_fd);
    if (g_sensor_fd > 0)
        close(g_sensor_fd);
    if (g_dvp_subdev_fd > 0)
        close(g_dvp_subdev_fd);

    return 0;
}
